Debugging the linux kernel using thread-aware of gdb

使用gdb的thread-aware脚本来调试linux内核

背景

在开发版上bring up linux的工作,会遇到各种各样的问题,考验一个软件工程师的知识面和经验。这个时候,有多一种工具的辅助,就可能会简化这个工作。gdb可以通过jtag之类的调试接口与soc的调试模块相连,读写soc系统的各寄存器与内存地址上的数据。Thread-aware就是一个脚本,可以使用调试口来获取linux中的进程信息,这在console不可使用的时候会显得对调试很有帮助。

Gdb的thread-aware脚本

Thread-aware需要gdb的python脚本支持,x86/arm架构在较早的gdb版本中已支持,riscv架构在Gdb 9.1开始支持。

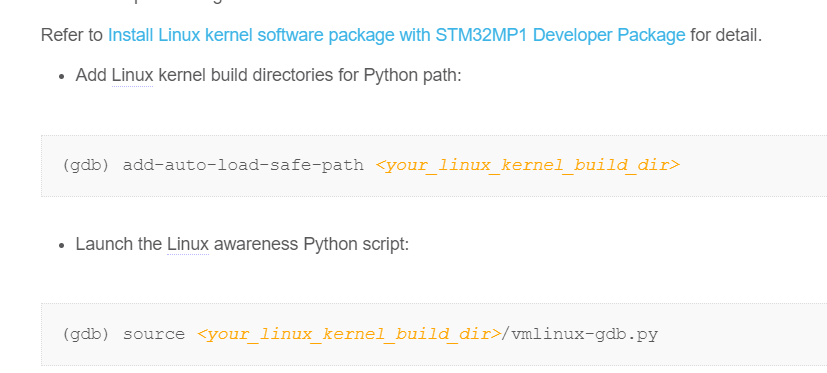

要使用thread-ware,需要在linux源码的cfg中打开GDB_SCRIPTS,编译后得到的linux就可以执行以下命令加载osawareness脚本

thread-aware-1

使用thread-aware命令

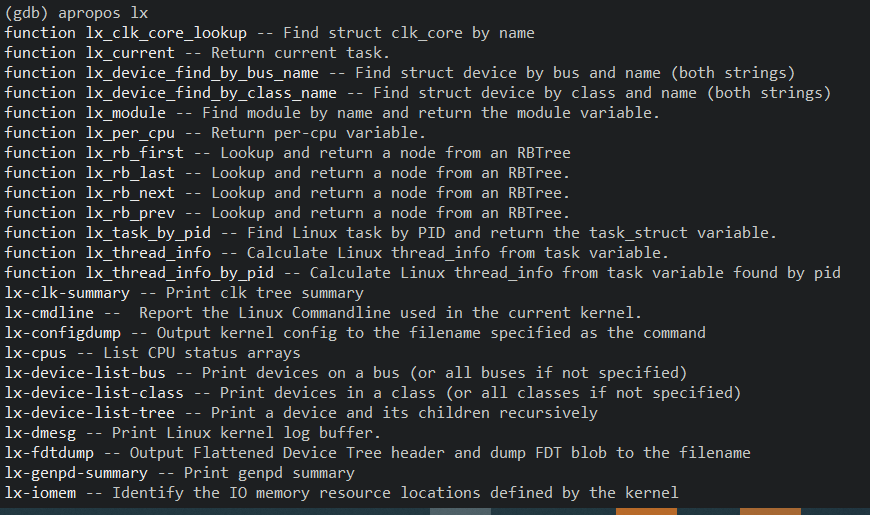

后续就可以使用lx_*命令来显示task相关内容

thread-aware-2

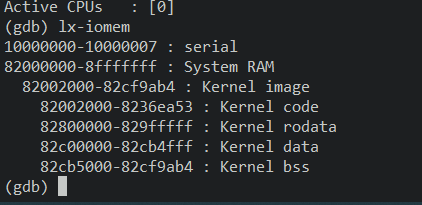

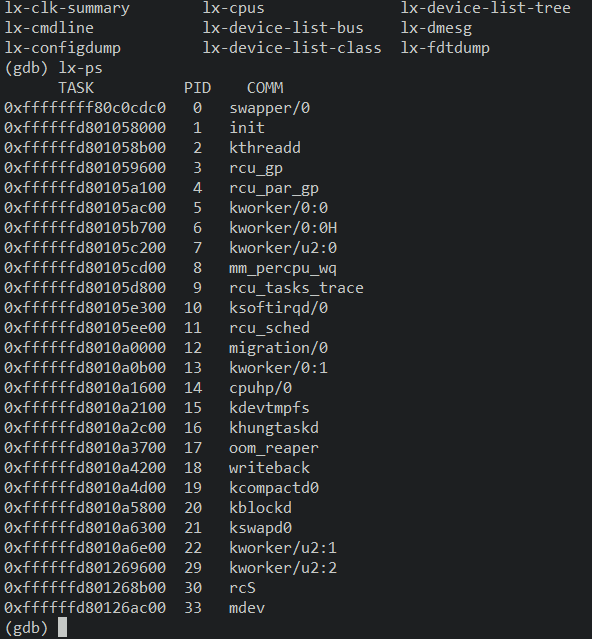

例如:

thread-aware-3

thread-aware-4

thread-aware-5

有些命令和函数在riscv下没有实现,

lx_current

thread-aware-6


Ref:

https://stackoverflow.com/questions/9561546/thread-aware-gdb-for-the-linux-kernel

https://wiki.st.com/stm32mpu/wiki/Debugging_the_Linux_kernel_using_the_GDB

https://www.kernel.org/doc/html/v4.15/dev-tools/gdb-kernel-debugging.html
